Tubing Suppression System
Product Overview
- Price:
Product Description:

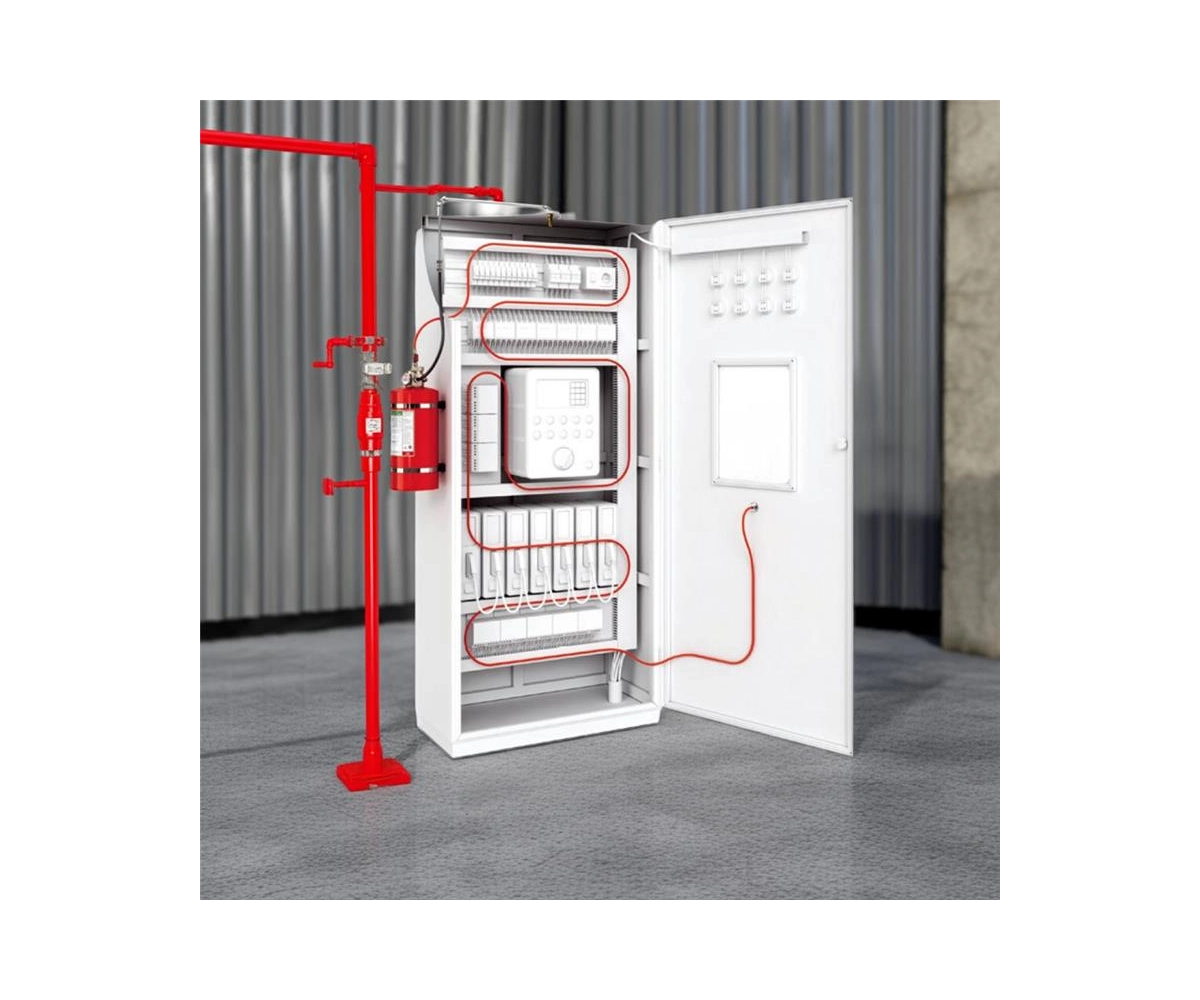

The tubing suppression system is a modern, efficient method for rapid fire detection and suppression. This technique should be used in specifically enclosed spaces such as electrical panels, server rooms, machinery, and control cabinets. However, this technique employs temperature-sensitive tubes that automatically burst upon detecting high temperature and discharge a fire-extinguishing agent directly onto the fire source. The system’s compactness and ease of installation make it worthwhile, particularly for industrial, commercial, or residential applications. Additionally, the tubing suppression system is a highly efficient, safe, reliable, and effective means of protecting your assets.
Additional Details:
- Brand: Somya Pyrotek Services Pvt. Ltd.
- Model: Tubing Suppression System
- Common sizes: 6 mm, 8 mm, 10 mm, 12 mm, 16 mm
- Standard reel lengths: 10 m, 20 m, 30 m, 50 m, 100 m
- A larger diameter is equal to a higher flow capacity
- Typical working pressure: 10–40 bar
- Common colors: Red, Black, Blue, Yellow, Orange
- Types: Wall-Mounted, Ceiling-Mounted, Floor-Mounted, Vehicle-Mounted
Key Features of Tubing Suppression System
- The tubing suppression system is self-activating and needs no human intervention to extinguish or detect fire.
- It is 100% mechanical/pneumatic system that works wonders even without electricity, external power sources, or batteries. Additionally, it ensures protection even during power outages.
- The heat-sensitive polymer tube fire suppression system acts as a constant linear sensor along its complete length, detecting fire wherever the temperature surpasses its point (normally 110°C – 170°C).
- In “Direct Release” systems, the tube explodes at the right point of fire. It also instantly discharges the extinguishing agent directly onto the flames.
- Most tubing systems use non-conductive extinguishing agents, such as Novec 1230 or FM-200, which leave no residue and control collateral damage to sensitive electronics.
- Fire is normally suppressed within seconds of detection (often under a few seconds). Thus, it prevents small sparks from escalating into severe tragedies.
- The flexible tubing suppression system and compact cylinders can be easily installed inside tight compartments, such as CNC machines, engine bays, and server racks.
Applicable Areas of Tubing Suppression System
- Industrial Machinery Enclosures
- Server Racks
- CNC Machines
- MCC & PCC Panels
- UPS Cabinets
- Telecom Cabinets
- Electrical Control Panels
- Data Centers
- Battery Energy Storage Systems (BESS)
- Solar Inverter Panels
Technical Configuration of Tubing Suppression System
| Parameter | Specification |
|---|---|
| System Type | Tubing-Based Suppression System |
| Tubing Material | Stainless Steel / Copper / Nylon / PTFE |
| Tubing Outer Diameter | 4 mm – 12 mm (typical) |
| Tubing Wall Thickness | 0.5 mm – 1.5 mm |
| Maximum Operating Pressure | 150 – 300 bar |
| Burst Pressure | 2–4× Operating Pressure |
| Temperature Range | −20°C to +120°C (or higher) |
| Suppression Agent | Clean Agent / CO₂ / Water Mist / Foam |
| Flow Rate | 0.5 – 5 L/min (typical) |
| Detection Method | Heat / Smoke / Pressure Trigger |
| Activation Type | Automatic / Manual |
| Nozzle Type | Micro Spray / Directional Jet |
| Nozzle Spacing | 0.5 – 2 meters |
| Connection Type | Compression / Push-Fit / Threaded |
| Control Valve | Solenoid / Mechanical |
| System Response Time | < 5 seconds |
| Certification Standards | UL / FM / NFPA / ISO |
| Maintenance Interval | 6–12 months |
| Expected Service Life | 10–20 years |
Maintenance Tips for Tubing Suppression System
Here, we have mentioned some imperative maintenance tips for the tube fire suppression system that every individual must know:
1. Trocare: A Routine for Cleaning Nozzles and Tubing
Dust, oil, and dirt must not accumulate inside the nozzles and tubes. They can sometimes create chokepoints in fire-suppression systems. Thus, it is vital to keep the system clean and perform routine cleaning activities. The cleaning agents must be compressed air and approved substances that leave no residuals behind.
2. Pressure Level Monitoring is Imperative
Sometimes, a periodic check of the system’s pressure level is required. It is an essential service that a system should receive. While a system might malfunction if the amount of pressure is too little or too great, a sudden change in a system’s level of pressure should also never be ignored.
3. Perform Regular Visual Inspections
It is very significant that a visual inspection of the tubing, nozzles, and connectors of the tubing suppression system be conducted regularly. The nozzles should be checked for cracks, leakage, bending, or damage. The automatic fire suppression system should also be clean, free of dust, grease, and chemicals. Abnormal signs such as discoloration or looseness should always be checked for immediate replacement or maintenance.
4. Pay Attention to Environmental Conditions
The environmental conditions to which the tubing suppression system is exposed also affect it. For example, excessive heat, humidity, vibration, or corrosive environments can damage the system’s tubing and accessories. Using a protective covering and operating at an operating temperature within the recommended range can help.
5. Maintain a Professional Servicing and Testing Schedule
The test by sight alone is inadequate. Periodic servicing of the automatic fire suppression system and functional testing by certified personnel are essential. Moreover, the system’s sensors, activation mechanism, and suppression agent must also be functionally tested to ensure they respond to an emergency. Proper documentation of servicing records is significant.
Why Should You Purchase a Tubing Suppression System from Us?
If you are looking to procure a reliable fire protection system for electrical panels, server rooms, vehicles, or equipment, it is a lucrative idea to select a tubing suppression system from Fire Extinguishers India. Therefore, our qualified team of professionals offers high-quality, certified, and efficient fire safety systems that detect and contain fires in their early stages without human intervention.
Moreover, our focus is not only on providing products but also on delivering a total solution from consultation through to after-sales service. Our systems are space-saving, cost-effective, and easy to maintain, giving you long-term protection. However, here are some vital reasons why you should choose use:
- Premium Quality Products: Tested and Certified as per Industry Standards
- Fast Fire Detection & Suppression: Early fire control and protection from major damage
- Wide Application: Server rooms, Electrical Panels, vehicles, machines, and many more
- Affordable Pricing: High Performance at Competitive Prices
- Expert Team Support: Expert team support for professionals, including installations and services
- Trusted Brand: Years of Experience in Fire Safety Solutions
With Fire Extinguishers India, you can opt for assured security, state-of-the-art technology, and complete peace of mind. Why compromise on anything? Only use the best.
Frequently Asked Questions
The tube suppression system uses a heat-sensitive, pressurized detection tube connected to a gas cylinder. Furthermore, when the fire starts:
- Tube feels heat at the right ignition point.
- It works automatically when the temperature reaches 110° to 150°.
- Fire is extinguished within seconds, preventing any damaging properties that might occur.
- Fire is extinguished within seconds, preventing severe tragedies.
Electrical panels are limited sections where fires can spread quickly due to wiring faults. Likewise, tube systems are:
- It easily fits in any inside panel or compact area.
- It is automatic with no manual intervention required.
- It is safe due to its clean agents, which have residue-free and non-conductive properties.
- It is reasonable compared to total flooding systems.
At Fire Extinguishers India, we offer a tube suppression system with:
- Clean Agents, which are safe for electronics and contain eco-friendly properties.
- Carbon dioxide (CO2) is effective for small enclosed panels but need cautions in compact areas.
Our tube suppression system is widely used in different industries in India. Furthermore, we have mentioned the top 5 industries:
- Industrial Machinery Enclosures
- Server Racks
- CNC Machines
- MCC & PCC Panels
- UPS Cabinets
Yes! Fire Extinguishers India designs systems that can be easily installed in existing or new panels. Thus, they are highly suitable for use in factories, commercial buildings, corporate towers, and data centers.
