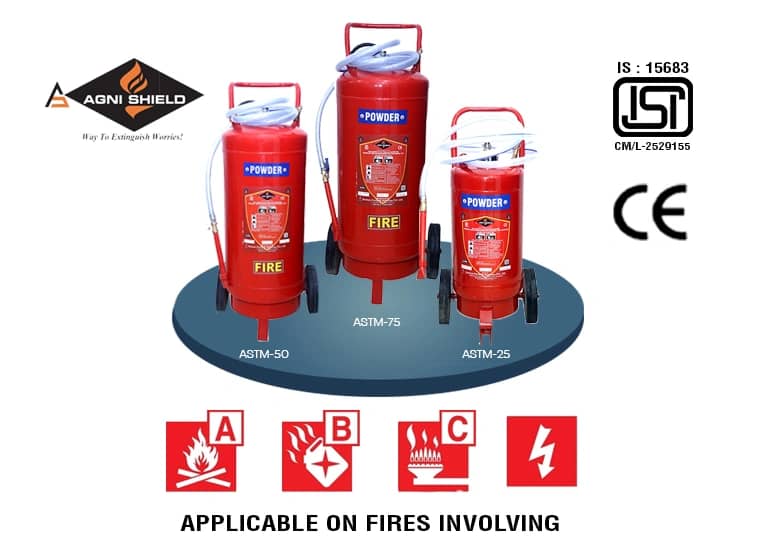

ABC/BC Powder Based Trolley Mounted Fire Extinguishers
Product Specification
- Capacity: 25kg, 50kg,75kg
- Fire Class: Class A, Class B, and Class C
- Extinguishing Media: Dry Powder
- Operating Temperature: -30°C to +55°C
Technical Specifications of ABC/BC Powder Based Trolley Mounted Fire Extinguishers
| Model | ASSP / ASTM – 25 | ASTM – 50 | ASTM – 75 |
|---|---|---|---|
| Capacity (in kg) | 25 Kg | 50 Kg | 75 Kg |
| IS Specification | IS:16018 | IS:16018 | IS:16018 |
| Throw of Jet Maintain | 8 Sec | 16 Sec | 16 Sec |
| Temperature Range | -30°C to +55°C | -30°C to +55°C | -30°C to +55°C |
| At Least 90% of Contests | 25-30 Sec | 40-50 Sec | 50-60 Sec |
| Range of Jet | 6 Mtrs. | 8 Mtrs. | 10 Mtrs. |
| Fire Rating | 20A & 233B | 10A & 233B | 20A & 233B |
| Working Pressure | 15Kgf/Cm² | 15Kgf/Cm² | 15Kgf/Cm² |
| Hydro Pressure | 35Kgf/Cm² | 35Kgf/Cm² | 35Kgf/Cm² |
| Bursting Pressure | 55Kgf/Cm² | 55Kgf/Cm² | 55Kgf/Cm² |
