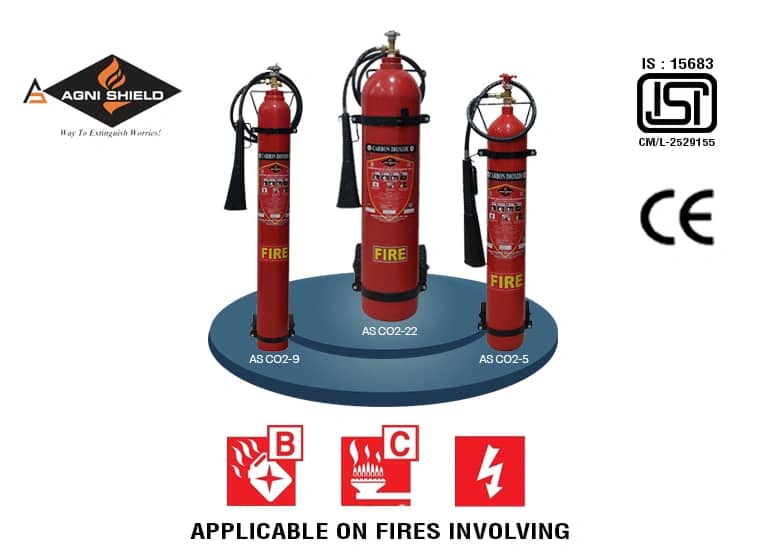

Trolley CO2 Fire Extinguishers
Product Specification
- Capacity: 6.5kg, 9kg,22.5kg
- Fire Class: Class B and Class C
- Extinguishing Media: Co2 Gas Conforming to IS:15222
- Operating Temperature: -30°C to +55°C
Technical Specifications of Trolley CO2 Fire Extinguisher
| Model | AS Co2 – 6.5 | AS Co2 – 9 | AS Co2 – 22.5 |
|---|---|---|---|
| Capacity (in kg) | 6.5 | 9 | 22.5 |
| Filling Ratio | 0.667 | 0.667 | 0.667 |
| Type of Extinguishing Media | Co2 Gas Conforming to IS:15222 | Co2 Gas Conforming to IS:15222 | Co2 Gas Conforming to IS:15222 |
| Expellant | Self | Self | Self |
| Minimum Effective Discharge (%) | 95 | 95 | 95 |
| Minimum Throw (in metres) | More than 2 | More than 2 | More than 2 |
| Minimum Discharge Time (in seconds) | More than 8 | More than 8 | More than 8 |
| Operating Position | Upright | Upright | Upright |
| Operating Temperature Range (in Celsius) | (-30) to (+55) | (-30) to (+55) | (-20) to (+55) |
| Operating Valve (IS 3224) | Squeeze Grip/ Wheel Type | Squeeze Grip/ Wheel Type | Squeeze Grip/ Wheel Type |
| Fire Rating | 55B | 55B | 89B |
