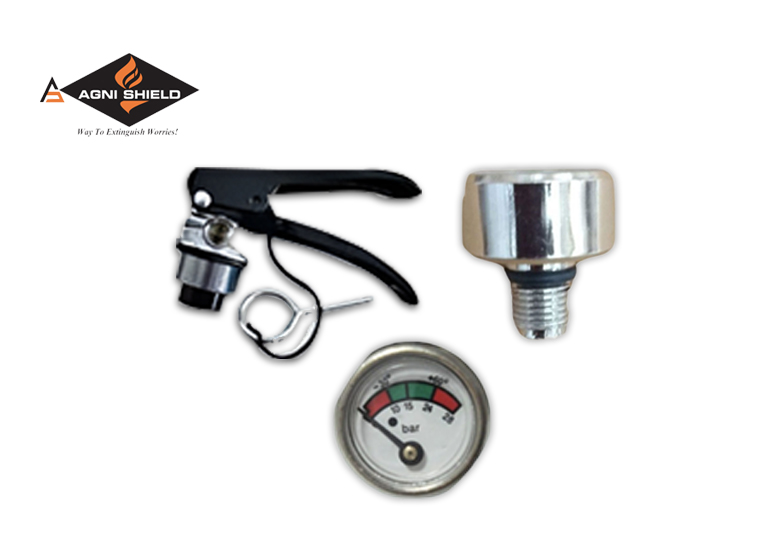

ABC Fire Extinguisher Valve
Product Specification
Capacity: 1 kg to 10 kg
Fire Class: Class A, Class B, Class C
Operating Temperature: -20°C to +55°C
Product Description:
The valves manufactured by importers of ABC fire extinguisher valve are an imperative element that controls the safe, controlled release of fire-suppressing powder. Furthermore, it is manufactured from heavy-duty brass or durable mild steel, which features a pull to prevent accidental discharge, a built-in pressure gauge, and an ergonomic squeeze handle. Nevertheless, this multipurpose valve is designed to swiftly extinguish Class A (wood, paper), Class C (electrical), and Class B (flammable liquids) fires. At Fire Extinguishers India, we manufacture premium ABC valves that will ensure your space is safe from unexpected fire emergencies.
Additional Details:
- Brand: Somya Pyrotek Services Pvt. Ltd.
- Model: ABC Fire Extinguisher Valve
- Capacity: 1 kg to 10 kg
- Maximum Coverage Area: 22.8 meters
- Temperature Range: -65° F to 120° F (-53° C to 49° C)
- Working Pressure: 15 kg/cm² (approx.)
- Handle Type: Lever Operated
- Charging Medium: Nitrogen Gas
- Agent Release Time: 1 to 3 seconds
Key Features of the ABC Fire Extinguisher Valve
Here are some vital key features of the ABC valve provided by the importers of the ABC fire extinguisher valve that you must know before planning to install it to safeguard your space:
- You will be able to easily regulate the discharge of the powder just by pressing down the lever.
- There is a color-coded gauge (usually green, indicating good condition) to verify that the extinguisher is adequately pressurized.
- The lever is protected from being pushed accidentally by a pin, which stays in place due to the tamper-proof seal that will break once you remove the pin.
- It is made of high-quality materials such as durable brass or aluminum alloy and cannot rust or withstand high cylinder pressures.
- An air-tight seal is created with the help of a strong spring and a rubber O-ring so that the powder would not leak.
- The bottom of the valve is securely attached to a dip tube that is inserted into the cylinder to the very bottom and extracts the powder.
- It also features a threaded port that allows mounting either a hose (if your cylinder is large) or a nozzle (if the cylinder is small).
Applicable Areas of the ABC Fire Extinguisher Valve
- Residential Homes
- Commercial Office Buildings
- Warehouses and Storage Facilities
- Manufacturing and Industrial Plants
- Automotive and Fleet Vehicles
- Garages and Auto Repair Shops
- Construction Sites
- Marine Vessels and Boats
- Schools and Educational Institutions
- Retail and Shopping Centers
Technical Configurations of the ABC Fire Extinguisher Valve
| Parameter | Technical Configuration |
|---|---|
| Valve Type | Stored Pressure, Squeeze Grip Valve |
| Valve Body Material | Forged Brass / Leaded Bronze |
| Handle Type | Lever Operated |
| Safety Device | Safety Pin with Tamper Seal |
| Working Pressure | 15 kg/cm² (approx.) |
| Hydraulic Test Pressure | 27 kg/cm² |
| Operating Temperature | -20°C to +55°C |
| Seal Material | EPDM / NBR Rubber Seals |
| Discharge Control | Controlled Lever Release |
| Pressure Indicator | Integrated Pressure Gauge |
| Charging Medium | Nitrogen Gas |
| Outlet Connection | Hose and Nozzle Assembly |
| Corrosion Resistance | Anti-corrosive Finish |
| Compatible Extinguishing Agent | ABC Dry Chemical Powder (Mono Ammonium Phosphate) |
| Standards Compliance | IS 15683 / Relevant Fire Safety Standards |
Pros and Cons of the ABC Fire Extinguisher Valve
It entirely depends heavily on whether you are evaluating its extinguishing agent (ABC Dry Powder) or its hardware (the physical valve assembly. Check out the vital pros and cons of the ABC valve delivered by reliable importers of ABC fire extinguisher valve.
| Pros | Cons |
|---|---|
| Useful with all-purpose ABC dry powder fire extinguishers. | Requires frequent inspection and maintenance for reliable operation. |
| Made of sturdy material for enduring results. | Might fail to operate when exposed to corrosion or damage. |
| Make sure that there is no leak of extinguisher fluid. | Can be discharged due to careless handling. |
| Simple to use for various applications. | Has to be replaced when seals or internal parts become worn out. |
| Easy to operate, making it suitable for commercial and industrial applications. | May not work with all brands/models of fire extinguishers. |
Safety Tips for the ABC Fire Extinguisher Valve
When it comes to mastering the operation of an ABC fire extinguisher, the valve requires quick, precise actions. Furthermore, here are some essential tips provided by reliable importers of ABC fire extinguisher valve that you must know:
- Gauge the Pressure before Using the Extinguisher
Look at the pressure gauge that is located on the extinguisher’s neck before touching the valve in case of an emergency. The needle should show that the pressure is in the green area. Otherwise, there can be no spraying or even rupturing of the valve.
- Remove the Pin Properly
There is a safety pin on the valve that prevents it from accidentally spraying. In order to use the valve, turn and pull out the pin in order to break the tamper seal. Do not press the handle while removing the pin; otherwise, it will lock the mechanism and prevent its removal.
- Spray at the Base of the Fire
Never point the nozzle at the flames, but only at the bottom of them. Spraying at the top of the flames will waste your dry chemical powder. You should smother the fire at the source of the burning.
- Squeeze the Valve Gently
You should press the main handle gently. If you release the handle, the valve will stop spraying. Press the valve firmly because of the pressure effect.
- Stand at the Safe Distance
Do not spray when standing directly over the fire. Stand at about 6 – 8 feet distance from the fire before squeezing the valve. When the fire gets smaller, you can move closer.
Maintenance and Inspection Tips for the ABC Fire Extinguisher Valve
- Carefully check the small gauge connected to the valve. The needle should point strictly into the green functional zone. If the needle shows the red “recharge” zone, then there might be a minor leakage in the valve, which requires servicing.
- The safety pin mechanically locks the valve lever, and the tamper seal (made of plastic) prevents removal of the pin. Check whether the safety pin is straight and the seal is not broken. A broken seal means that the valve was tampered with.
- Inspect the metal parts of the valve, including its body, handle, and lever. Any corrosion, dents, pittings, or cracks on these elements show that moisture got into them and can cause malfunctioning of the valve because of high pressure.
- Look at the threads of the valve and around the nozzle for any caked-on white chemical powder. Any residues indicate that the internal seals of the valve are leaking and need repair or replacement of the whole unit.
- Make sure that the nozzle, threaded into the valve, is absolutely clean. Any dust, cobwebs, or even small insects can block the opening of the valve. It leads to pressure accumulation behind the valve when the lever is squeezed.
- Prevent any greasy dirt, oil, and dust accumulation on the valve and handle in the kitchen or industrial environment. It prevents the valve activation in an emergency because the handle can get slippery.
- Although visual monthly inspection is crucial, you still need to organize professional maintenance once a year. The professionals will make sure that all internal elements of the valve are in order and perform a hydrostatic test on the valve body.
What Sets Us Apart From Others?
At Fire Extinguishers India, we produce premium-quality ABC fire extinguisher valves that have been designed for reliable performance and longevity. As one of the trusted importers of ABC fire extinguisher valve products, we ensure that every valve produced by us has been built to high-quality standards so that it can be used effectively by buyers, distributors, and maintenance firms for fire safety equipment.
- High-quality ABC fire extinguisher valves are produced for consistent performance
- Valves that meet industry quality standards
- Quick and reliable delivery in India with excellent customer service
- Cost-effective solutions without sacrificing quality
- ABC fire extinguisher valves that suit fire extinguisher manufacturing firms, dealerships, and maintenance organizations
Get certified, durable, and high-performance ABC fire extinguisher valves from Fire Extinguishers India. Reach out to us today for reliable service and quality fire safety products at affordable prices.
Frequently Asked Questions
Ans: ABC fire extinguisher valve regulates the release of dry chemical powder when fighting a fire. Therefore, it makes sure that the process of extinguishing a fire is safe, steady, and controlled.
Ans: Yes, of course. If the valve is broken or has any leaks, then it should be immediately replaced by a professional. Using such a valve will make your fire extinguisher less effective and even more dangerous to use.
Ans: Products that come from reputable importers of ABC fire extinguisher valve products are higher quality, more durable, and work reliably.
Ans: It is popular in:
- Commercial offices and factories.
- Warehouses and retail outlets.
- Institutions of education and hospitals.
Ans: When buying the valve, you should take into account its material, working pressure, compatibility with your fire extinguisher, corrosion resistance, compliance with fire safety regulations, and the reputation of the manufacturer/supplier.
