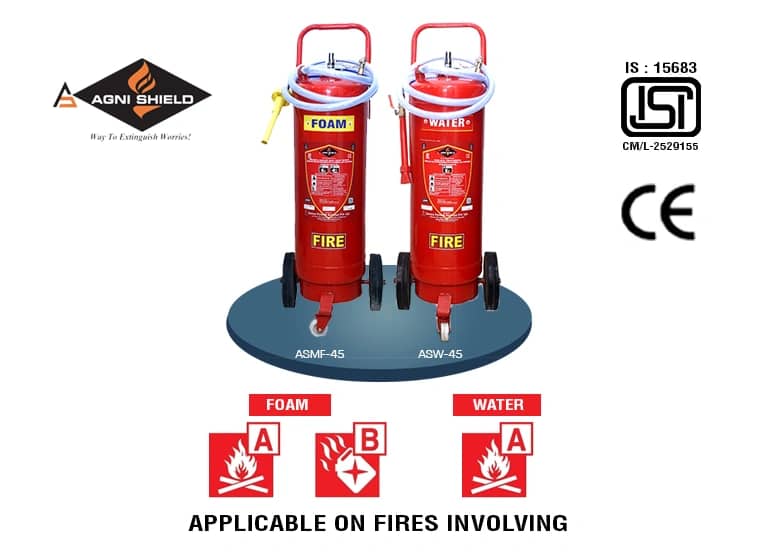

Water & Foam Trolley Mounted Fire Extinguishers
Product Specification
- Capacity: 45 ltr
- Fire Class:
- Foam: Class A and Class B
- Water: Class A
- Extinguishing Media: Soft Water/ AFFF Foam IS 4989
- Operating Temperature: +5°C to +55°C
Product Description
Technical Specifications of Water & Foam Trolley Mounted Fire Extinguishers
| Model | ASW-45 | ASMF-45 |
|---|---|---|
| Capacity (in Ltr.) | 45 | 45 |
| Anti-Corrosive Inhibitor | Epoxy Polyester Powder Coating | Epoxy Polyester Powder Coating |
| Type of Extinguishing Media | Soft Water | Soft Water / AFFF Foam IS 4989 |
| Expellant | Pressurized with Nitrogen gas | Pressurized with Nitrogen gas |
| Minimum Effective Discharge (%) | 95 | 95 |
| Minimum Jet Length (in metres) | More than 2 Mtr. | More than 2 Mtr. |
| Discharge Time (in seconds) | More than 13 Sec. | More than 13 Sec. |
| Hydraulic Test Pressure (in kgf/sq. cm) | 35 | 35 |
| Operating Position | Upright | Upright |
| Operating Temperature Range (in Celsius) | (+5) to (+55) | (+5) to (+55) |
| Operating Valve | Squeeze Grip with Discharge Hose | Squeeze Grip with Discharge Hose |
| Fire Rating | 10A | 10A & 233B |
